Quality Components + Service
Terminal Blocks Lighting & Accessories
Terminal Blocks Lighting & Accessories from A.A.G. Stucchi
- Stucchi polycarbonate with screw or pin fixing,
- Terminals push/push, screw/push, screw/screw
- Push wire quick release,
- Earth connection auto or screw,
- Cable strain accessories,
Please be aware that our products are specialised components for use by manufacturers or licensed persons only.
product information & warnings
| Terminal Block Information & Warnings | Heat Resistance | General Information | IP Classification |
| Materials | Screws & Nuts | Warnings | Wires |
Push Wire / Push Wire Terminals
Including 4P+E 1675 Series and new 2675 Series double decker miniature Terminal Blocks for lighting fixtures. Read more.
| iMAGE | la pART nO. | dESCRIPTION | dATA sHEET |
|---|---|---|---|
 | ST1673/SP | Terminal Block 2 pole + earth | 1673/SP |
 | ST1673/SP/43 | Terminal Block 2 pole + earth (with earth connection in zinc plated steel) | 1673/SP/43 |
 | ST1673/A | Terminal Block 2 pole + earth | 1673/A |
 | ST1673/A/42 | Terminal Block 2 pole + earth (with earth connection in phosphor bronze) | 1673/A/42 |
 | ST1673/A/43 | Terminal Block 2 pole + earth (with earth connection in zinc plated steel) | 1673/A/43 |
 | ST1673/A/44 | Terminal Block 2 pole + earth (with earth connection in stainless steel) | 1673/A/44 |
 | ST1675/SP | Terminal Block 4 pole + earth | 1675/SP |
 | ST1675/SP/43 | Terminal Block 4 pole + earth (with earth connection in zinc plated steel) | 1675/SP/43 |
 | ST1675/A | Terminal Block 4 pole + earth | 1675/A |

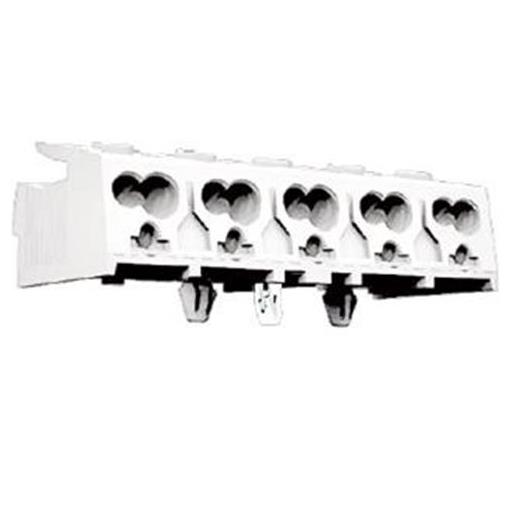

 | ST1675/A/42 | Terminal Block 4 pole + earth (with earth connection in phosphor bronze) | 1675/A/42 |

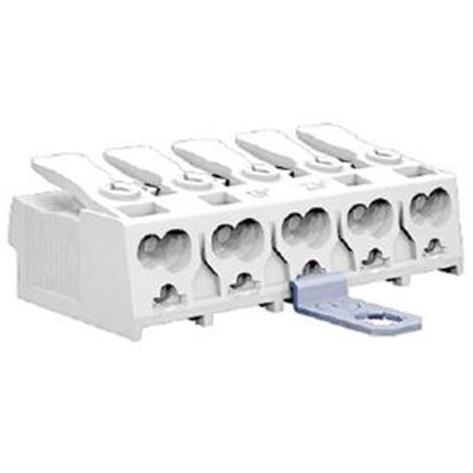

 | ST1675/A/43 | Terminal Block 4 pole + earth (with earth connection in zinc plated steel) | 1675/A/43 |

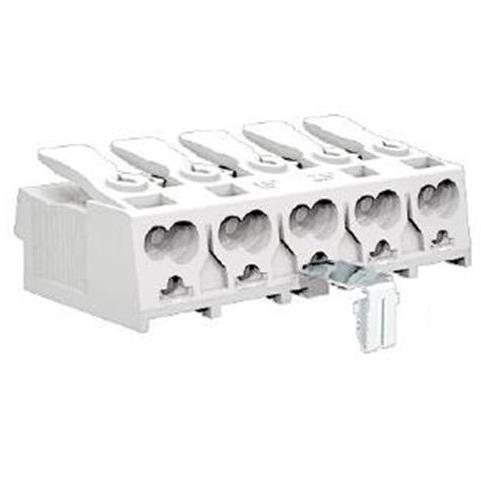

 | ST1675/A/44 | Terminal Block 4 pole + earth (with earth connection in stainless steel) | 1675/A/44 |

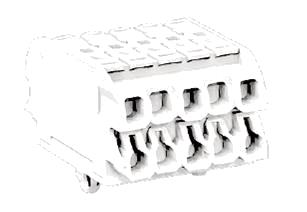

 | ST2675/A | Terminal Block 4 pole + earth | 2675/A |
 | ST2675/A/42 | Terminal Block 4 pole + earth (with earth connection in bronze) | 2675/A/42 |

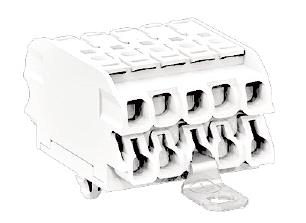

 | ST2675/A/43 | Terminal Block 4 pole + earth (with earth connection in zinc plated steel) | 2675/A/43 |
 | ST2675/SP | Terminal Block 4 pole + earth | 2675/SP |
 | ST2675/SP/43 | Terminal Block 4 pole + earth (with earth connection in zinc plated steel) | 2675/SP/43 |
 | ST671/A | Terminal Block 2 pole + earth | 671/A |
 | ST671/A/43 | Terminal Block 2 pole + earth (with earth connection in zinc plated steel) | 671/A/43 |
Please refer to the individual data sheet for the full product specification. Also take note of the product information and warnings at the top of this page.
Screw / Push Wire Terminals
| Image | LA Part No. | Description | Data Sheet |
|---|---|---|---|
 | ST645 | Terminal Block 1 Pole | 645 |
 | ST646/A | Terminal Block 2 pole + earth | 646/A |
 | ST646/A/43 | Terminal Block 2 pole + earth (with earth connection in zinc plated steel) | 646/A/43 |
 | ST646/A/44 | Terminal Block 2 pole + earth (with earth connection in stainless steel) | 646/A/44 |
 | ST666-F/A | Terminal Block 2 pole + earth | 666-F/A |

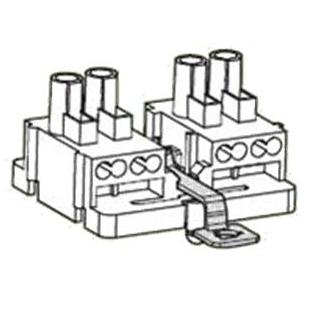

 | ST675/AR | Terminal Block 4 pole + earth (with earth connection in nickel plated steel) | 675/AR |
 | ST676/AR | Terminal Block 2 pole + earth | 676/AR |
 | ST676-F/A | Terminal Block 2 pole + earth | 676-F/A |
 | ST679/AR | Terminal Block 3 pole + earth | 679/AR |
Screw / Screw Terminals
| Image | LA Part No. | Description | Data Sheet |
|---|---|---|---|
 | ST673/AR | Terminal Block 2 pole + earth (with earth connection in nickel plated steel) | 673/AR |
Earth Connections
| Image | LA Part No. | Description | Data Sheet |
|---|---|---|---|
 | STS646/43 | Earth Connection for use with ST646/... (in zinc plated steel) | S646/43 |
 | STS646/44 | Earth Connection for use with ST646/... (in stainless steel) | S646/44 |
 | STS666/43 | Earth Connection for use with ST666/... (in zinc plated steel) | S666/43 |
 | STS671/43 | Earth Connection for use with ST671/A (in zinc plated steel) | S671/43 |
Please refer to the individual data sheet for the full product specification. Also take note of the product information and warnings at the top of this page.
Cable STRAIN ACCESSORIES
| Image | LA Part No. | Description | Data Sheet |
|---|---|---|---|
 | ST1699 | Cable Strain Cover (cable dia. 5-14mm) | 1699 |
 | ST1699/V | Cable Strain Cover (cable dia. 5-14mm) | 1699/V |
Please refer to the individual data sheet for the full product specification. Also take note of the product information and warnings at the top of this page.
