OneTrack - Adapters & Accessories
Featuring a variety of adapters and accessories for track lighting including symmetric, asymmetric and compact adapters.
OneTrack
A.A.G. Stucchi's innovative OneTrack range of track, connection joints and adapters for use with track lights combines the functionality of all 3 track systems currently available in the market, allowing single phase, 3 phase and 3 phase with control system operation in just one product.
The unique Eurostandard Plus concept provides compatibility with other major systems in the market and offers the possibility to update the ligthing project with smart and dynamic lighting systems in the future.
Designed for use by OEMs, OneTrack allows the freedom to select the luminaire type at any stage of the project and the flexible communication lines ensure its use in future Human Centric lighting systems.
If IP40 is a requirement for your project, A.A.G. Stucchi also offers a range of specially designed covers for track pieces and adapters to provide this additional level of protection.
The OneTrack range is covered by Certificate of Suitability CS10512N.
Please be aware that our products are specialised components for use by manufacturers and licensed persons only.
Lighting Australia offers stock for local supply and we welcome your enquiry. Please contact us for more information or discuss your track lighting project.
Adapters
Please review general information and
warnings for the ONETRACK adapter products on A.A.G Stucchi's
website and contact us for more details, including installation
guides for each of the track profiles.
Adapter Options
Symmetric and asymmetric adapters are currently available for use with the OneTrack system. All adapters feature a phase selector and are available in 6 conductor (3 phase and control system) or 4 conductor (3 phase) versions. Special bases allow ceiling or recessed fixing of the adapters without the need for track.
Symmetric Adapters
| Image | LA Part No. | Description | Data Sheet |
|---|---|---|---|
 | ST9009/W ST9009/B ST9009/G | White 6 Conductor Symmetric Adapter (3P+N+DALI) Black 6 Conductor Symmetric Adapter (3P+N+DALI) Grey 6 Conductor Symmetric Adapter (3P+N+DALI) | 9009/x |
 | ST9009-4/W ST9009-4/B ST9009-4/G | White 4 Conductor Symmetric Adapter (3P+N) Black 4 Conductor Symmetric Adapter (3P+N) Grey 4 Conductor Symmetric Adapter (3P+N) | 9009-4/x |
Please refer to the
individual product data sheet for the full product specification. Also note
that all installation and replacement operations of OneTrack must be done by
qualified, specialist personnel, according to wiring regulations. Please contact us for more details including installation guides.
Asymmetric Adapters
| Image | LA Part No. | Description | Data Sheet |
|---|---|---|---|
 | ST9209/W ST9209/B ST9209/G | White 6 Conductor Asymmetric Adapter (3P+CONTROL) Black 6 Conductor Asymmetric Adapter (3P+CONTROL) Grey 6 Conductor Asymmetric Adapter (3P+CONTROL) | 9209/x |
 | ST9209-4/W ST9209-4/B ST9209-4/G | White 4 Conductor Asymmetric Adapter (3P) Black 4 Conductor Asymmetric Adapter (3P) Grey 4 Conductor Asymmetric Adapter (3P) | 9209-4/x |
 | ST9409-4/W ST9409-4/B ST9409-4/G | White 4 Conductor Compact Asymmetric Adapter (3P) Black 4 Conductor Compact Asymmetric Adapter (3P) Grey 4 Conductor Compact Asymmetric Adapter (3P) | 9409-4/x |
Please refer to the
individual product data sheet for the full product specification. Also note
that all installation and replacement operations of OneTrack must be done by
qualified, specialist personnel, according to wiring regulations. Please contact us for more details including installation guides.
Adapter Accessories
LED Driver Boxes
For use with asymmetric adapters| Image | LA Part No. | Description | Data Sheet |
|---|---|---|---|
 | ST9209/BD-M-W ST9209/BD-M-B | White LED Driver Box for Asymmetric Adapter Black LED Driver Box for Asymmetric Adapter | 9209/BD-M-x |
 | ST9209/BD-L-W ST9209/BD-M-B | White LED Driver Box (long) for Asymmetric Adapter Black LED Driver Box (long) for Asymmetric Adapter | 9209/BD-L-x |
 | STKIT-BD/M10-W STKIT-BD/M10-B | White LED Driver Box Kit M10 Black LED Driver Box Kit M10 | KIT-BD/M10-x |
| STKIT-BD/M13-W STKIT-BD/M13-B | White LED Driver Box Kit M13 Black LED Driver Box Kit M13 | KIT-BD/M13-x |
 | STS-9209/BD-M10 STS-9209/BD-M13 | Aluminium Nipple for LED Driver Box M10 Aluminium Nipple for LED Driver Box M13 | S-9209/BD-Mxx |
 | STS-9209-BD/3-W STS-9209-BD/3-B | White Plastic Cover & Screws for LED Driver Box Black Plastic Cover & Screws for LED Driver Box | S-9209-BD/3-x |
 | STS-9209-BD-10/4-W STS-9209-BD-10/4-B | White Spacer for M10 Nipple Black Spacer for M10 Nipple | S-9209-BD-10/4-x |
| | STS-9209-BD-13/4-W STS-9209-BD-13/4-B | White Spacer for M13 Nipple Black Spacer for M13 Nipple | S-9209-BD-13/4-x |
Please refer to the
individual product data sheet for the full product specification. Also note
that all installation and replacement operations of OneTrack must be done by
qualified, specialist personnel, according to wiring regulations. Please contact us for more details including installation guides.
Adapter Ceiling Bases
| Image | LA Part No. | Description | Data Sheet |
|---|---|---|---|
 | ST9000/BPU-D-W ST9000/BPU-D-B | White DALI Ceiling Base for Adapter Black DALI Ceiling Base for Adapter | Contact us for details |
 | ST9000/BRU-W ST9000/BRU-B | White Recessed Ceiling Base for Adapter Black Recessed Ceiling Base for Adapter | Contact us for details |
Please refer to the
individual product data sheet for the full product specification. Also note
that all installation and replacement operations of OneTrack must be done by
qualified, specialist personnel, according to wiring regulations. Please contact us for more details including installation guides.
mECHANICAL aDAPTERS
For heavy loads (100-150N)
| Image | LA Part No. | Description | Data Sheet |
|---|---|---|---|
 | STS-9000/M-W STS-9000/M-B STS-9000/M-G | White Mechanical Adapter Black Mechanical Adapter Grey Mechanical Adapter | S-9000/M-W |
Please refer to the
individual product data sheet for the full product specification. Also note
that all installation and replacement operations of OneTrack must be done by
qualified, specialist personnel, according to wiring regulations. Please contact us for more details including installation guides.
Adapter Wiring Accessories
| Image | LA Part No. | Description | Data Sheet |
|---|---|---|---|
 | STS-9009/10-W STS-9009/10-B STS-9009/10-G | White Internal Cable Lock for Symmetric Adapter Black Internal Cable Lock for Symmetric Adapter Grey Internal Cable Lock for Symmetric Adapter | S-9009/10-x |
 | STS-9209/20-W STS-9209/20-B STS-9209/20-G | White Internal Cable Lock for Asymmetric Adapter Black Internal Cable Lock for Asymmetric Adapter Grey Internal Cable Lock for Asymmetric Adapter | S-9209/20-x |
 | STS-9009/BC-W STS-9009/BC-B STS-9009/BC-G | White External Cord Grip for Adapter (for use with Mechanical Adapter) Black External Cord Grip for Adapter (for use with Mechanical Adapter) Grey External Cord Grip for Adapter (for use with Mechanical Adapter) | S-9009/BC-x |
 | STS-9009/51 | Aluminium Locking Ring for Symmetric Adapter | S-9009/51 |
 | STS-9209/51 | Aluminium Locking Ring for Asymmetric Adapter | S-9209/51 |
 | STS-9009/M10 STS-9009/M13 | Aluminium Nipple for Adapter (M10) Aluminium Nipple for Adapter (M13) | S-9009/Mxx |
 | STS-9009/M10-SC STS-9009/M13-SC | Aluminium Nipple for Adapter without Collar (M10) Aluminium Nipple for Adapter without Collar (M13) | S-9009/Mxx-SC |
 | STS-9009/M10-F1 | Aluminium Nipple for Apdapter with M10 Internal Thread | S-9009/M10-F1 |
 | STS-9009/D-M10 STS-9009/D-M13 | Nut for Aluminium Nipple (M10) Nut for Aluminium Nipple (M13) | S-9009/D-Mxx |
 | STS-9009/T-HAN | Adapter Installation Tool Handle | S-9009/T-HAN |
 | STS-9009/T-INS | Adapter Installation Tool Insert | S-9009/T-INS |
Please refer to the
individual product data sheet for the full product specification. Also note
that all installation and replacement operations of OneTrack must be done by
qualified, specialist personnel, according to wiring regulations. Please contact us for more details including installation guides.
IP40 Adapter Accessories
| Image | LA Part No. | Description | Data Sheet |
|---|---|---|---|

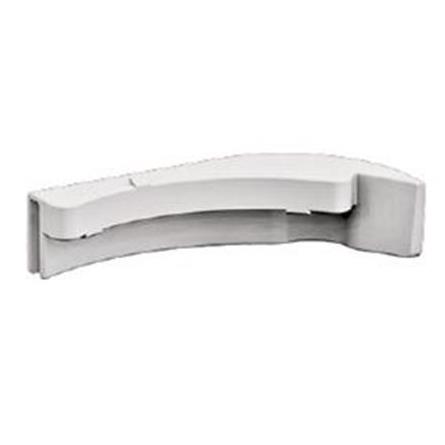

 | STS-9009/IP40-W STS-9009/IP40-B STS-9009/IP40-G | White IP40 Cover for Symmetric Adapter Black IP40 Cover for Symmetric Adapter Grey IP40 Cover for Symmetric Adapter | S-9009/IP40-x |
 | STS-9209/IP40-W STS-9209/IP40-B STS9209/IP40-G | White IP40 Cover for Asymmetric Adapter Black IP40 Cover for Asymmetric Adapter Grey IP40 Cover for Asymmetric Adapter | S-9209/IP40-x |
Please refer to the
individual product data sheet for the full product specification. Also note
that all installation and replacement operations of OneTrack must be done by
qualified, specialist personnel, according to wiring regulations. Please contact us for more details including installation guides.
